3012 RO Membrane Varying Warranty Durations Electrodeionization Technology Optimize Filtration Purification

​​Pure Water Manufacturing System – Advanced Technical Specifications​​

​​Core Technology Features​​

• ​​Electrodeionization (EDI) System​​: Fully automated continuous purification process
• ​​Multi-Stage Filtration​​: Integrated pre-treatment and polishing stages
• ​​Smart Control System​​: PLC-based automation with touchscreen interface





​​Key Performance Parameters​​

• ​​Water Quality Output​​: <0.1μS/cm conductivity (18.2MΩ·cm resistivity)
• ​​Flow Rate Range​​: 0.5-20m³/h (configurable)
• ​​Recovery Rate​​: 75-90% (depending on feedwater quality)
• ​​Operating Pressure​​: 0.2-0.5MPa

​​System Components​​

• ​​Pretreatment Module​​: Multimedia filtration + ultrafiltration

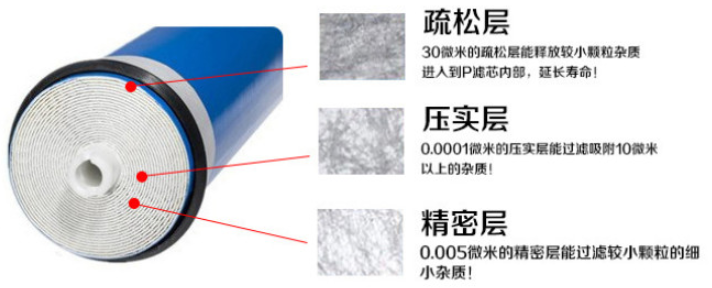

• ​​RO Membrane Array​​: 8040 spiral-wound elements
• ​​EDI Stack​​: 400×400mm membrane package
• ​​Final Polishing​​: Mixed-bed ion exchange
