High Purity Water Consumables For ​​Semiconductor Pharmaceutical

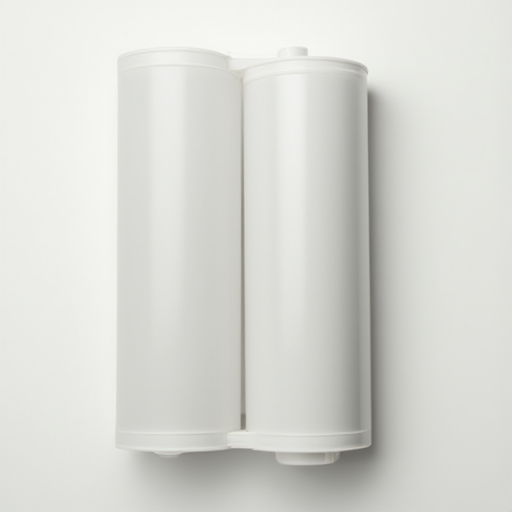

Dual-Path Ion Exchange Purification Column

Model: Ion Exchange Resin Column System

Key Characteristics:

• Dual-flow channel configuration for simultaneous processing
• Modular design allowing disassembly and repeated use
• Standardized cover connection: 1/8" BSPT (British Standard Pipe Taper) internal threading, compatible with 1/4" or 3/8" polyethylene water tubing

Manufacturing Methodology:
Advanced production techniques incorporating:

• Precision extrusion forming
• Controlled injection molding
• Ultrasonic processing
• Thermal fusion bonding

Material Specifications:

• Construction material: Premium food-grade polypropylene (PP) plastic
• Maximum operating pressure: <8 kilograms-force per square centimeter
• Standard finish: White (alternative colors available upon request)
• Media content: Superior-grade MB-8180 ultrapure water resin (custom fill materials optional)

Dimensional Parameters:
Complete unit height options: ~33cm, 42cm, 55cm, 70cm (fully customizable lengths)
Active resin bed dimensions: ~31cm, 40cm, 53cm, 68cm (fully customizable lengths)
External diameter of ABS housing: 75mm (consistent across all models)
